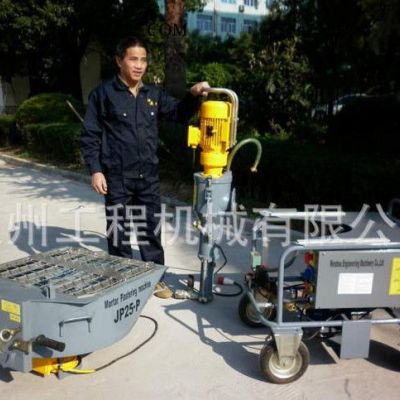

JP25干粉砂浆喷涂机 砂浆喷浆机 石膏基喷浆机

      JP25是我公司引进德国技术制造的一款自动作业的机械，集合进料、混合、泵送、粘结、喷涂联合功能为一体，适宜各种不同特性与不同用途的预拌干混砂浆施工；设置自动送料机构；具备自动连续搅拌功能；配置计量水泵与供水系统；压力控制保护机构，实现远程控制操作；模块式结构，拆卸简单，移动方便，使用容易。

     JP25 is an automatic operation of plastering machine introduced German technology. It combines multi-functions of feeding, pumping, bonding and plastering, it’s suitable for construction of different characteristics and use dry ready-mixed mortar. It sets automatic feeding system to achieve automatic continuous mixing function. It fixes measuring water pump and supply water system. It sets the pressure controlling protection mechanism and achieves the remote control. With modular structure, it's easy to move, dissemble and operate.

标准配置Standard equipment

混合区料斗Mixing hopper

泵设备Pump equipment      Wenggong D40

带有气源支持喷枪Spraying gun with air support (配喷嘴with spraying nozzle)

水量电枢控制集成 Water volume armature control integration

水压泵Water pressure pump

输浆管Delivery hose     GB/T3683 25-1-W.P或

                        GB/T3683 32-1-W.P.9Mpa  Length:10m

带快速连接器空气管Air tube with fast connector  ID:￠13  Length:10m

防震压力计总成    Shockproof pressure gage assembly  YN60 6Mpa

搅拌器和硬质合金钢转子  Mixer screw shaft and carbide steel rotor

齿轮马达Gear motor    SK25FAL-100LB/2

工具箱Tool box

操作说明书Operating instruction

JP25型砂浆喷涂机技术参数

Technical parameters of JP25 Mortar plastering machine

  电源Supply power                                               380V  50Hz

  电机功率Motor power                                           5.5kw

  压缩机功率Compressor power                                2.2kw

  **大颗粒尺寸Maximum grain size                           4mm

  排量Output                                                        25L/min

  输送压力Delivery pressure                                    40bar

  水平输送距离Horizontal delivery distance                40m

  垂直输送距离Vertical delivery distance                    15m

  搅拌机功率Mixer power                                        1.1kw

  搅拌机容量Mixer volume                                      115L

  重量Net weight                                                  240kg

  外型尺寸Dimension (L×W×H)                              1324*728*1443mm

 注：以上数据只作参考，因选用砂浆的理化性能差别，其产生的各项数值也不相同。

Note: The above figures are only for reference, due to differences in physical and chemical properties of selected mortar, its each value is different accordingly.
