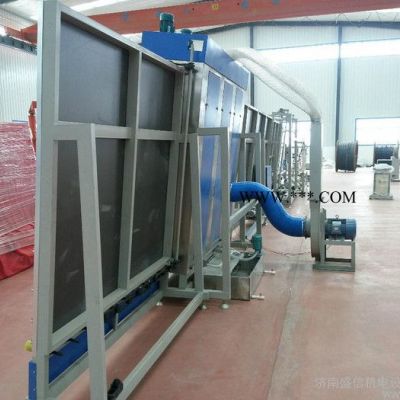

| 380 | 中空玻璃生产线 |
|---|
性能特点：Features:
采用进口低压电器元件、传感器、PLC全程自动控制设备运转；
本机生产效率高，设有小片玻璃存储区，清洗玻璃可连续输入；
采用Proface触摸屏，操作方便，动态显示设备运转及鼓掌情况；
进口刷丝，可清洗镀膜LOW-E玻璃；
可以生产超长，大小片（可选）三层和异型中空玻璃。
Adopt the imported low-voltage electric apparatus component,sensor,The equipment is
automatically controllde by PLC for the whole operation.
This machine is in high efficiency;it has storgae room for little piece of glass Washing the glass
can be imported in succession.
Adopt the proface touch-sensitive screen.which is easy to operate.Dynmic display the operation and
trouble situation of the machine.
import brush can be cleasned steamed plated Low-E glass.
The machine can produce extend,extend,big and(optional),unique shape insulating glass.
技术参数Technical parameter
输入电压（Power supply）:380v 50Hz
总功率（Total power）；38KW
清洗速度（Cleanout power）:2-12m/min
**工作速度（Max,glass size）;45m/min
**小玻璃尺寸（Min,glass size）;450*280mm
中空玻璃**大厚度（Max,insulating glass thickness）;48mm
清洗玻璃厚度（Cleanout glass thickness）;3-12mm
耗气量（Air consumption）;800L/min
外形尺寸（Dimension）;22000*3800/*3450mm
加工玻璃**大尺寸（Max,glass size）;2500*3000mm
中空玻璃厚度（Insulating glass thickness）;40mm
玻璃清洗速度（Washing speed）;0-6m/min
毛刷3对（Brush 3pairs）传送速度（Converying Speed）;0-40m/min
电功率（Power）;3P 380v/1P 220v 38kw 50Hz
空压机（Air compressor）流量（Air quantity）;0.8m3/min
气压（Air pressure）;1MPa
水（Water）;用水量（Water consumption）;0.5t/h
水导电率（Water conductivity）;≤50s/cm
